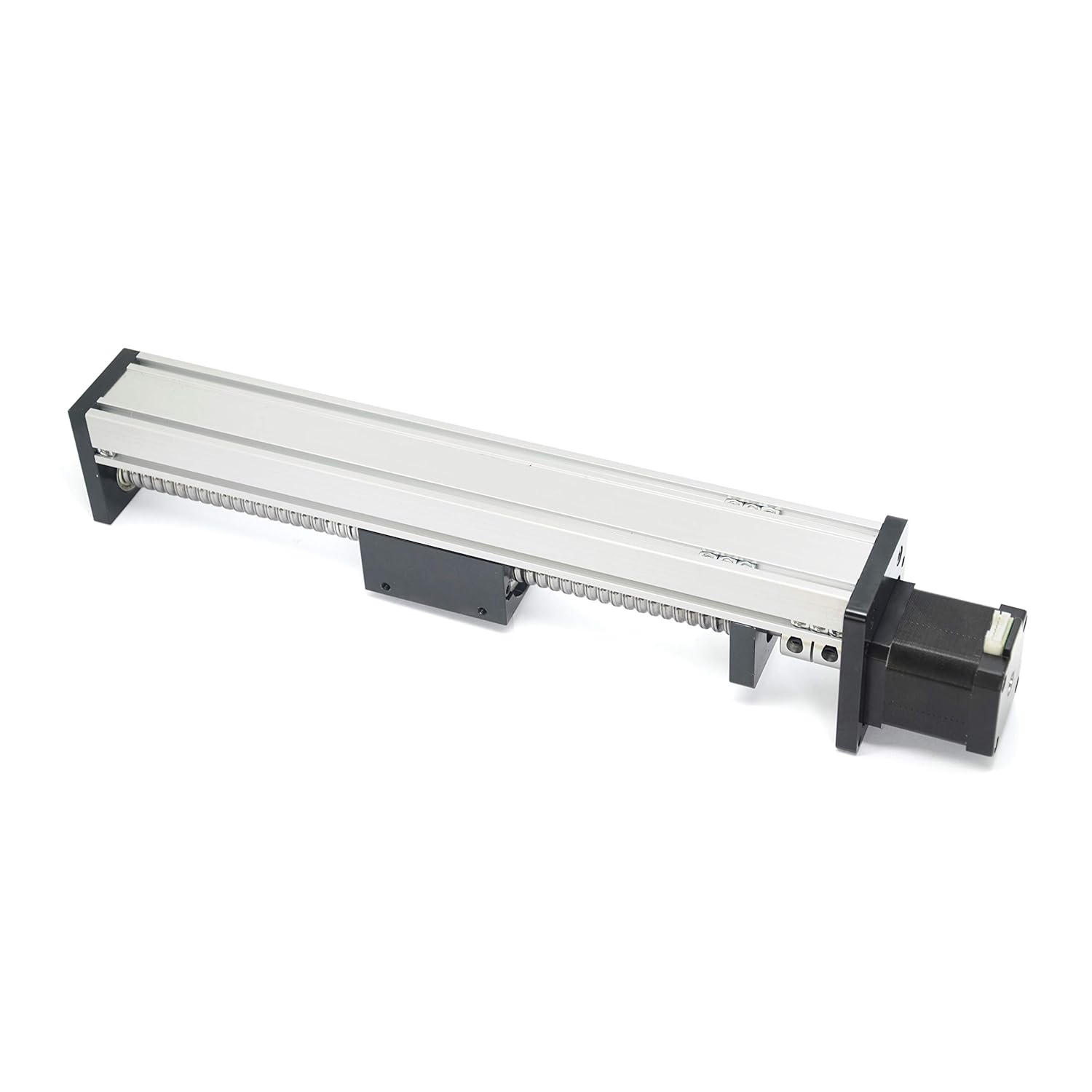

Zeberoxyz 1pcs Linear Rail Guide Ballscrew SFU1605 with Square Linear Rails with NEMA17 Stepper Motor, 200mm Effective Stroke Length for DIY CNC Router Parts X Y Z Linear Stage Actuator(Size:200mm)

Descriptions: Product Name: 200mm Travel Length Linear Rail Guide Ballscrew SFU1605 with Square Linear Rails with NEMA17 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 42mm Motor length: 47mm Holding torque: 1.2N.m Current: 1.5A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 87.3g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 200mm Total length: 365mm Type: linear system moulde Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm) Level ballscrew: c7 Weight: About 1765g Package Content: 1pcs Linear Stage Actuator with NEMA17 Stepper Motor 1pcs stepper motor cable PLEASE NOTE: Please allow 0-1mm error due to manual measurement. Due to different display screens and lighting effects, the actual color of the item may be slightly different from the color shown on the picture. Any question or problem, do not hesitate to contact or QA us,we will try our best to service you with in 24 hours.

• Brand New and Good Qualtiy Products
• Material: Made of good quality metal, fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion
• High Accuracy: Repeat positioning accuracy is ±0.03mm; Load:Maximum horizontal load capacity: 30kg; Maximum vertical load capacity: 15kg. Speed: 0-100mm/min
• Effective stroke: 200mm effective stroke, Total length: 360mm, Ballscrew type: SFU1605 ( diameter: 16mm, pitch of screw: 5mm ) Lead: 5mm (the lead screw can move 5mm in one turn), 4pcs M4 threaded hole on the moving block to fix the workpiece
• Package Content: 1pcs Linear Stage Actuator with NEMA17 Stepper Motor, 1pcs Stepper Motor Cable
