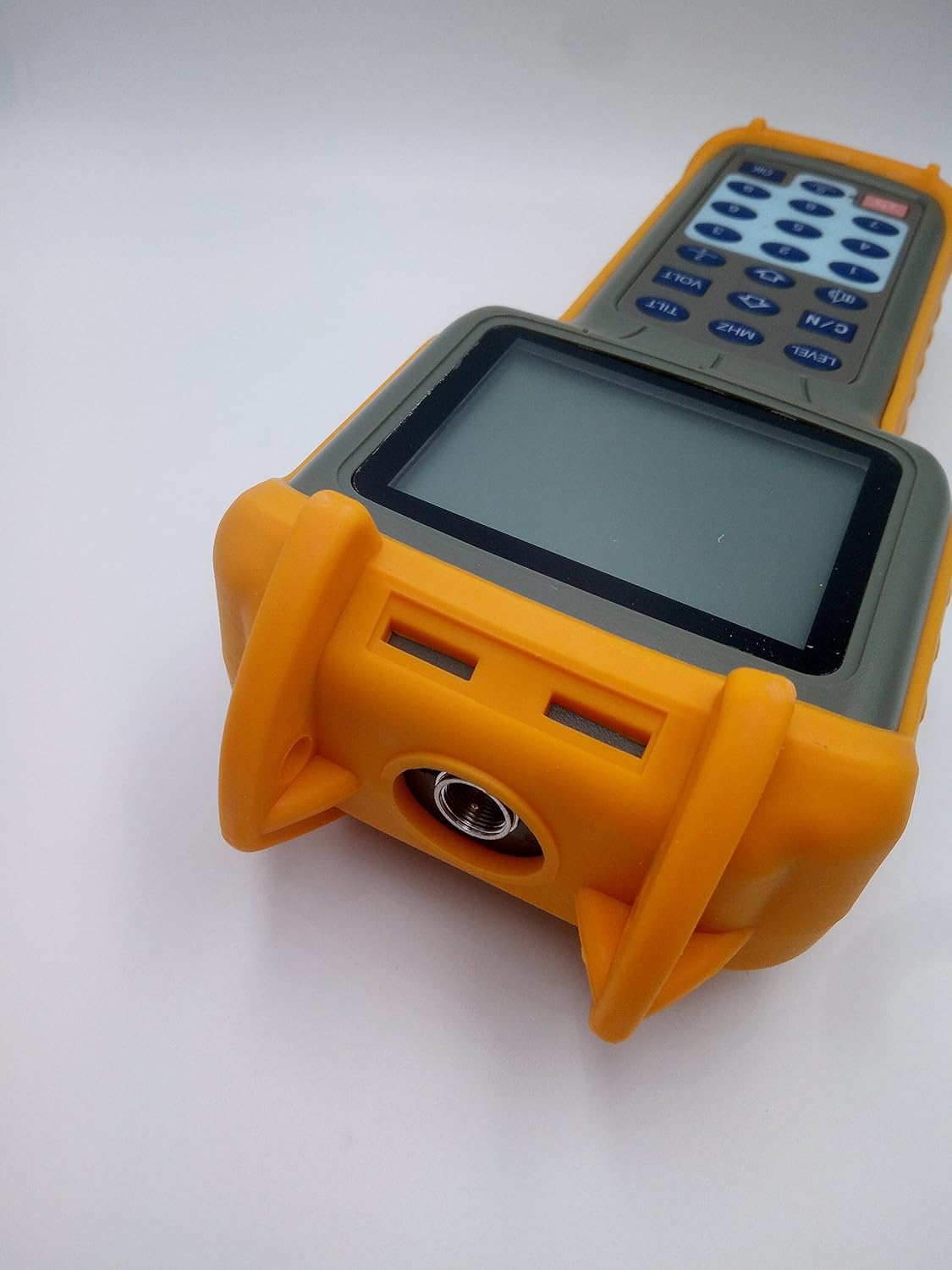

RY-S110 Handle Digital Signal Level Meter DB Tester Cable TV USA STD-CATV 47~870MHz 30dBuV ~ 120 dBuV 20dB ~ 50 dB

Introduction S110 Signal Level Meter is an instrument used for the construction and maintenance of analog TV / digital TV, and the measurement of TV signal level and power level. It is widely applied in the routine maintenance of the CATV system. S110 Signal Level Meter is compatible to both analog / digital channels, with strong comprehensive performances. S110 is a compact, small light-weight portable signal level measuring Technical Data Model: RY-S110 Doulbe channel, A/V, C/N, Average Power, Trunk line Voltage Frequency / channel Frequency scope: 47~870MHz Channel: U.S. Standard Channel USA STD-CATV U.S. digital standard channels USA STD-CATV Frequency accuracy:+50 * 10E-6 (20 oC +5 oC) Level measurement Measuring range: 30dBuV ~ 120 dBuV Measurement accuracy: +2dB (20 oC +5oC) Resolution: 0.5dB Carrier-to-noise ratio measurement Measuring range: 20dB ~ 50 dB Signal input range: >=85dBuV Measurement accuracy: + 3dB (20oC +5oC) Channel scan: 150 Voltage measurement Input range: 1 ~ 100V (AC / DC) Measurement accuracy: +2V Resolution: 1V Power supply Battery: 7.2V/1500mAH rechargeable battery AC Supply: AC 90V-220V 50Hz-60Hz Working time: 6h Charging time: 3h

• High brightness backlight operating modes;
• Clear LCD screens, dual-channel measurement display;
• Convenient and Pragmatic;
• Numeric keypad input for easy operation;
