Dasqua 5610-0162 Large Face Dial Test Indicator, 0-.030" Range, .0005" Graduation
Product details
| Management number | 210915270 | Release Date | 2026/04/04 | List Price | $17.22 | Model Number | 210915270 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

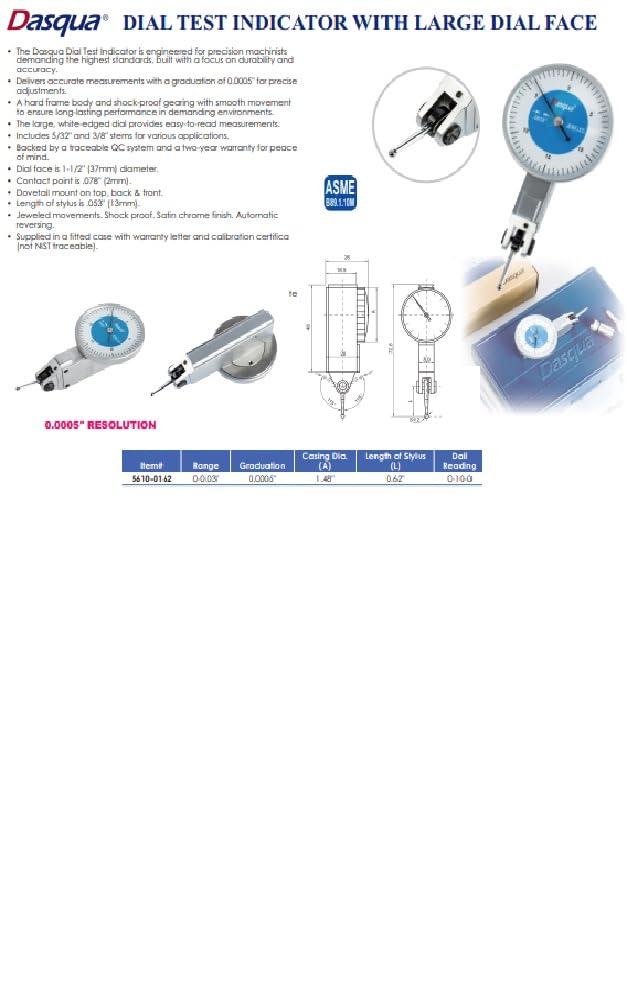

Dasqua 0-.03" White Large Face 0-15-0 Dial Test Indicator. The Dasqua Dial Test Indicator is engineered for precision machinists demanding the highest standards, built with a focus on durability and accuracy. Delivers accurate measurements with a graduation of 0.0005" for precise adjustments. A hard frame body and shock-proof gearing with smooth movement to ensure long-lasting performance in demanding environments. The large, white-edged dial provides easy-to-read measurements. Includes 5/32" and 3/8" stems for various applications. Backed by a traceable QC system and a two-year warranty for peace of mind. Dial face is 1-1/2" diameter (37mm). Contact point is .078" (2mm). Dovetail mount on top, back and front. 5/32" and 3/8" stems are included. Length of stylus is .53" (13mm). Jeweled movements. Shock proof. Satin chrome finish. Automatic reversing. Supplied in a fitted case with warranty letter and calibration certificate (not NIST traceable - see picture).
- The Dasqua Dial Test Indicator is engineered for precision machinists demanding the highest standards, built with a focus on durability and accuracy
- Delivers accurate measurements with a graduation of 0.0005" for precise adjustments; A hard frame body and shock-proof gearing with smooth movement to ensure long-lasting performance in demanding environments
- The large, white-edged dial provides easy-to-read measurements; Includes 5/32" and 3/8" stems for various applications; Backed by a traceable QC system and a two-year warranty for peace of mind
- Dial face is 1-1/2" (37mm) diameter; Contact point is .078" (2mm); Dovetail mount on top, back and front; 5/32" and 3/8" stems are included; Length of stylus is .53" (13mm)
- Jeweled movements; Shock proof; Satin chrome finish; Automatic reversing; Supplied in a fitted case with warranty letter and calibration certificate (not NIST traceable - see picture)
| Item Weight | 16 ounces |
|---|---|
| Manufacturer | HHIP |
| Item model number | 5610-0162 |
| Product Dimensions | 4 x 2 x 2 inches |
